Product Description

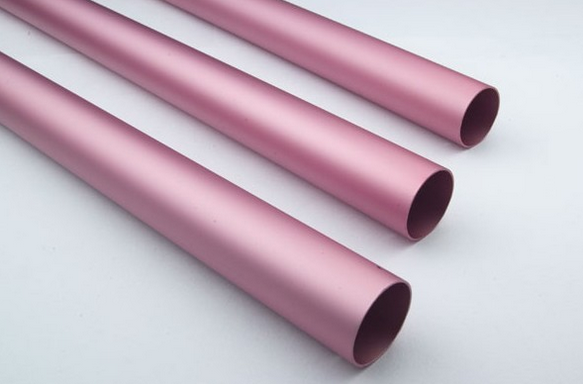

1.Name:Alumimium  Tube

2.Material:6063,6061,6060,6005,etc

3.Temper:T5,T6

4.Color:Silver,Black,Red,Blue,White,and many other colors can be available

Length: As required

6.Shape:Round,Square,T-profile,Angle,Flat,or as per the drawings and samples

7.Fabrication: cutting,drilling,punching,milling,,clearing,etc

8.Package:inner plastic paper interleaving each profile,outer fixed by plywood or pallets, or as required

9.Certification:ISO 9001:2008;ISO14001:2004;SGS



Technical Data


 1)Chemical composition for aluminum tube

Alloy

   Si

   Fe

    Cu

  Mn

    Mg

      Cr

  Zn

  Ti

 impurity

  Al

6063

  0.2

  0.35

    0.1

 0.1

0.45-0.9

     0.1

  0.1

 0.1

  0.15

Rest

6061

 0.4-0.8

  0.7

0.15-0.4

 0.15

0.8-1.2

0.04-0.35

 0.25

0.15

  0.15

Rest

6060

 0.3-0.6

0.1-0.3

    0.1

 0.1

0.35-0.6

       -

 0.15

 0.1

  0.15

Rest

6005

 0.6-0.9

  0.35

    0.1

 0.1

0.4-0.6

     0.1

  0.1

 0.1

  0.15

Rest

2)Mechanical property for  aluminum tube

     Alloy

  Temper

     Tensile strength

    Yield strength

   Elongation

     6063

      T5

         ≥160Mpa

       ≥110Mpa

      ≥8%

      T6

         ≥205Mpa

       ≥180Mpa

      ≥8%

     6061

      T6

         ≥265Mpa

       ≥245Mpa

      ≥8%

3)Anodized for aluminum tube

   Grade

                   Anodizing thickness

Hole scaling quality of oxide layer

  Average  thickness

  Local  thickness

P.Cr erosion weight less method

   AA10

      ≥10um

     ≥8um

          ≤30mg/d m²

   AA15

      ≥15um

     ≥12um

4)Powder coating for alumimium tube

Coating thickness

Coating impress rigidity

Adhesive force of coating layer

40-120mm

Indentation hardness>80

              0 Grade
